Jenkins Parameters Demystified: A Beginner-Friendly Tutorial.

Introduction.

In the ever-evolving world of software development and DevOps, automation is a cornerstone of productivity and efficiency. Jenkins, one of the most popular open-source automation servers, plays a vital role in enabling Continuous Integration and Continuous Delivery (CI/CD). As projects grow in complexity, so does the need for flexibility within Jenkins pipelines and jobs. This is where parameters come into play.

Parameters in Jenkins allow users to create dynamic, flexible, and reusable build jobs. Instead of hardcoding values like environment names, version numbers, or feature flags, parameters let you input these values at build time, making your pipelines more adaptable and maintainable. They empower teams to use a single job for multiple use cases—whether that means deploying to different environments, testing various configurations, or selecting specific versions of code to build.

Imagine you’re deploying an application to development, staging, and production environments. Without parameters, you might need separate jobs for each environment, which leads to duplication and maintenance headaches. With parameters, you can configure a single job that accepts an environment name as input, streamlining the process and reducing clutter.

Jenkins supports multiple types of parameters, each suited for different kinds of inputs. These include string parameters for free text, choice parameters for dropdown selections, boolean parameters for true/false toggles, and even file and password parameters for more advanced use cases. Additionally, plugins like the Active Choices Plugin allow dynamic parameter behavior based on Groovy scripts or other parameters.

Using parameters is straightforward. In freestyle jobs, you can enable the “This project is parameterized” checkbox and add parameters directly from the UI. In pipeline jobs (using Jenkinsfiles), parameters are defined using the parameters block within the pipeline script. These values can then be referenced inside build stages to alter behavior based on user input.

This approach not only makes your Jenkins jobs more user-friendly but also aligns with best practices like DRY (Don’t Repeat Yourself) and infrastructure as code. Whether you’re triggering builds manually, through the Jenkins UI, or via automated API calls, parameters provide a powerful way to influence job behavior without altering the pipeline logic itself.

Moreover, parameters enhance collaboration and consistency across teams. Developers, QA engineers, and DevOps personnel can all interact with the same build job but tailor it to their needs through parameter inputs. This reduces miscommunication, speeds up workflows, and ensures that environments remain consistent across deployments.

In larger organizations, where compliance and traceability matter, parameters also offer better auditability. Each build triggered with parameters creates a recorded set of inputs, making it easy to trace what version was deployed, to which environment, and with what options.

In this blog post, we’ll dive deep into the different types of Jenkins parameters, how to configure them in both freestyle and pipeline jobs, and real-world use cases to demonstrate their value. You’ll also learn tips, tricks, and best practices to get the most out of Jenkins parameters in your CI/CD workflows.

Whether you’re a beginner looking to understand the basics or an experienced DevOps engineer seeking advanced techniques, understanding the parameter concept in Jenkins will significantly improve your automation game.

Step 1: Understand What Parameters Are

• Parameters allow you to define inputs that a user must or can provide before a build starts.
• Common use cases:
  • Deploying to different environments (dev, test, prod)
  • Choosing different branches or build versions
  • Passing configuration settings

Step 2: Enable Parameters for a Jenkins Job

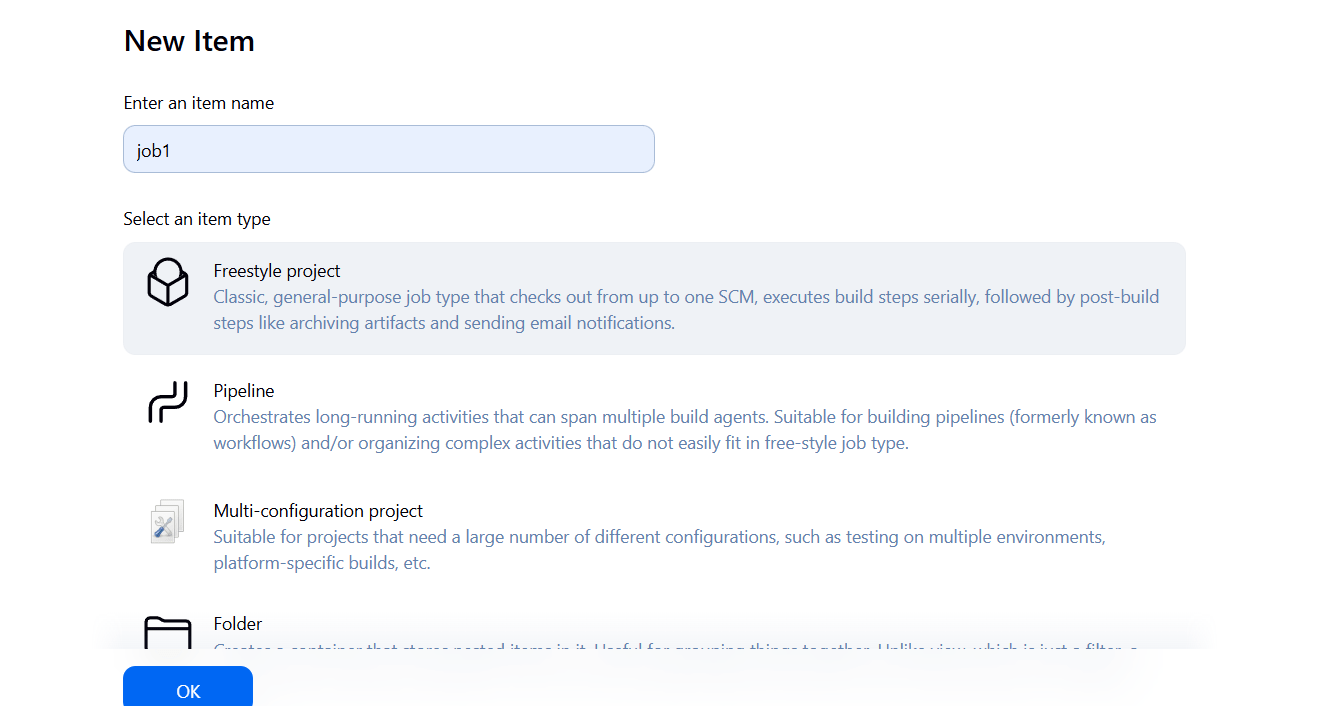

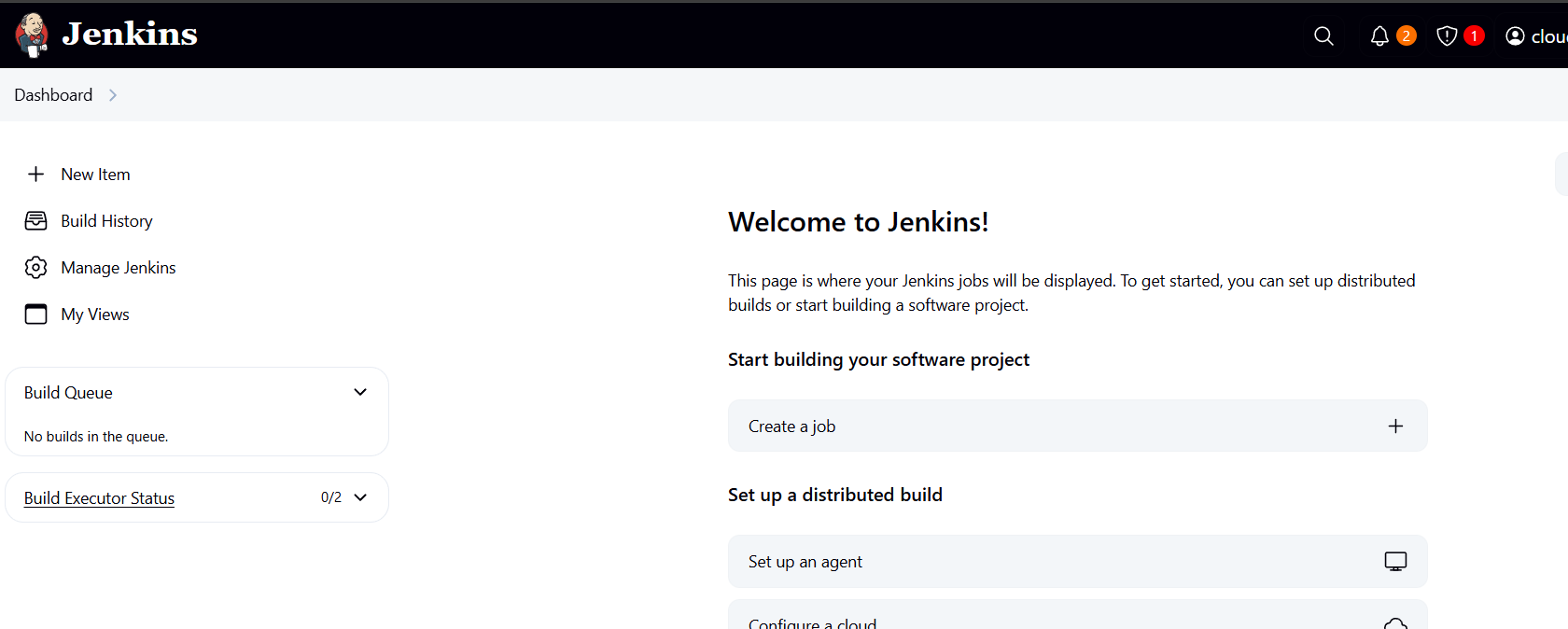

1. Go to your Jenkins job (freestyle or pipeline).
2. Click “Configure”.

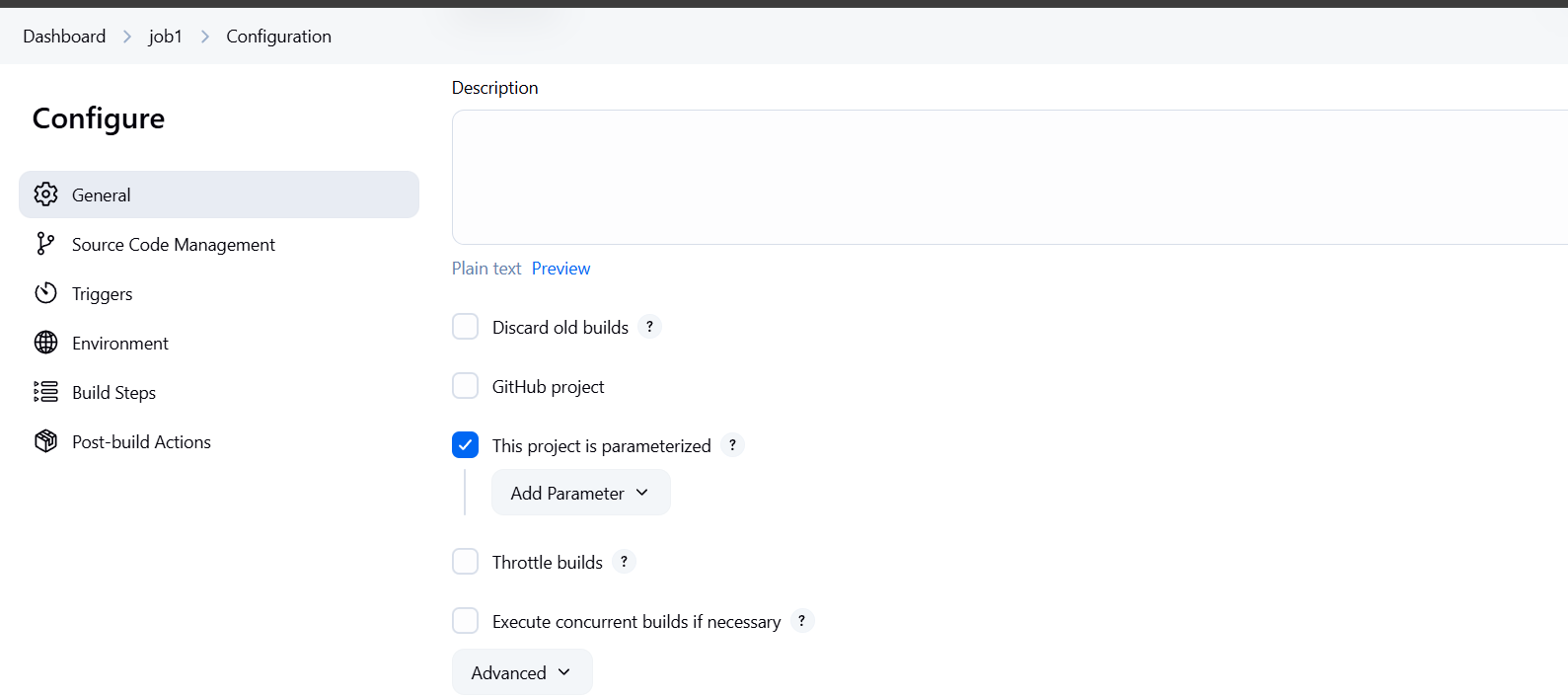

3. Check the box “This project is parameterized”.
4. Click “Add Parameter”.

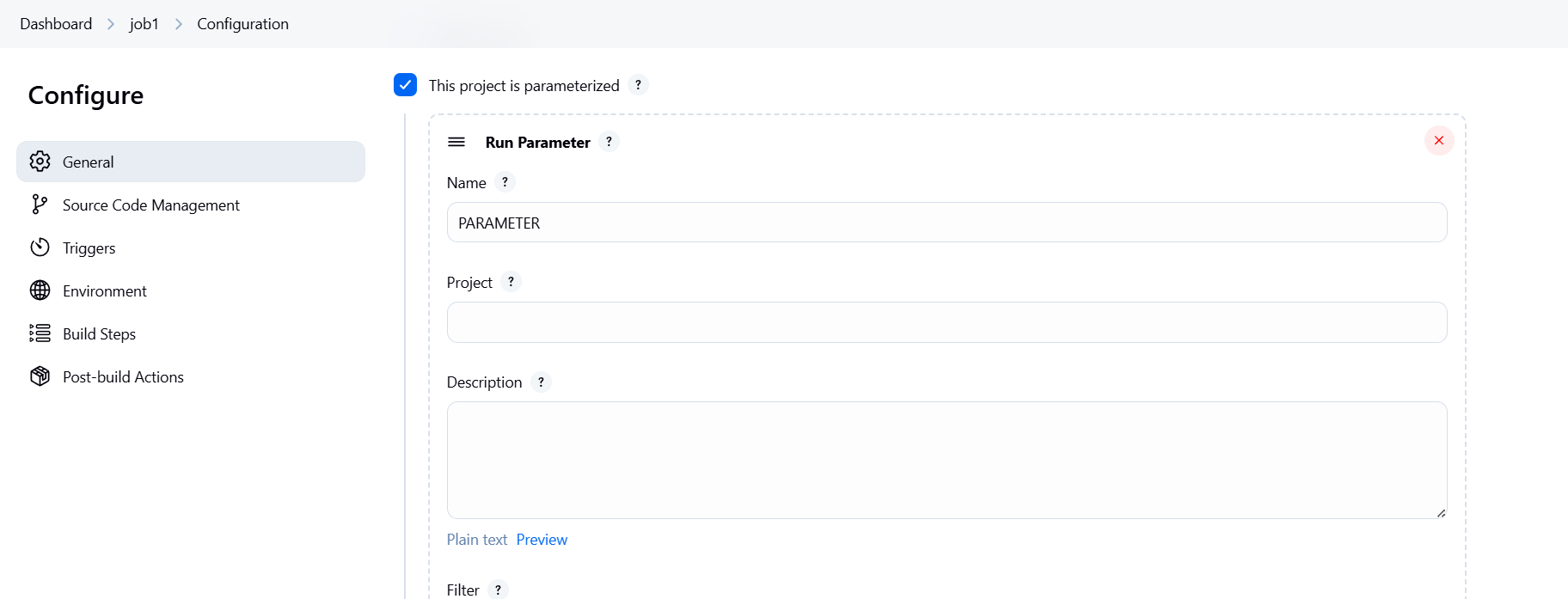

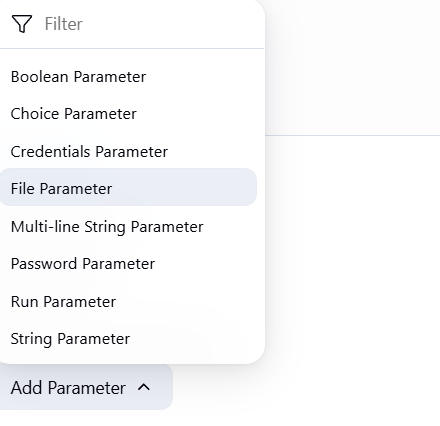

Step 3: Types of Parameters

Jenkins offers several parameter types:

Step 4: Using Parameters in Freestyle Job

After adding parameters:

• Use them in build steps (e.g., in shell scripts) using ${PARAMETER_NAME}.
• Example:

echo "Deploying to environment: ${ENV}"

Step 5: Using Parameters in Pipeline Job (Jenkinsfile)

Define parameters at the top of the pipeline script:

pipeline {
    agent any
    parameters {
        string(name: 'VERSION', defaultValue: '1.0', description: 'Version to deploy')
        booleanParam(name: 'DEPLOY', defaultValue: true, description: 'Deploy after build?')
        choice(name: 'ENV', choices: ['dev', 'test', 'prod'], description: 'Target environment')
    }
    stages {
        stage('Build') {
            steps {
                echo "Building version: ${params.VERSION}"
            }
        }
        stage('Deploy') {
            when {
                expression { return params.DEPLOY }
            }
            steps {
                echo "Deploying to: ${params.ENV}"
            }
        }
    }
}

Step 6: Triggering Builds with Parameters

You can:

• Click “Build with Parameters” in the UI.
• Trigger via API or CLI, passing parameter values.

Example API call:

curl -X POST http://jenkins/job/myjob/buildWithParameters \
  --user user:token \
  --data "VERSION=2.0&DEPLOY=true&ENV=prod"

Step 7: Tips and Best Practices

• Use descriptive names and helpful descriptions.
• Validate inputs using scripts or plugins like Extended Choice Parameter or Active Choices Plugin.
• Group related parameters together in the UI for usability.

Conclusion.

In today’s fast-paced development environment, automation isn’t just a convenience—it’s a necessity. Jenkins parameters offer a simple yet powerful way to make your build pipelines flexible, reusable, and intelligent. By using parameters, you reduce duplication, improve maintainability, and enable dynamic behavior across different stages of your CI/CD pipeline. Whether you’re deploying to multiple environments, testing specific branches, or handling user-driven configurations, parameters ensure that your Jenkins jobs adapt to the needs of the moment—without rewriting code or reconfiguring jobs every time.

From basic string and boolean inputs to dynamic values powered by plugins, the parameter system in Jenkins opens up a wide range of possibilities for customization and control. More importantly, it bridges the gap between technical efficiency and team collaboration, making it easier for developers, testers, and operations teams to work together through a unified and parameterized automation process.

As you integrate parameters into your Jenkins workflows, you not only streamline your builds but also embrace best practices that scale with your project. So, whether you’re building your first pipeline or refining an enterprise-grade deployment system, leveraging Jenkins parameters is a key step toward smarter, cleaner, and more efficient automation.
